Home >> Products >> LED Panel Light

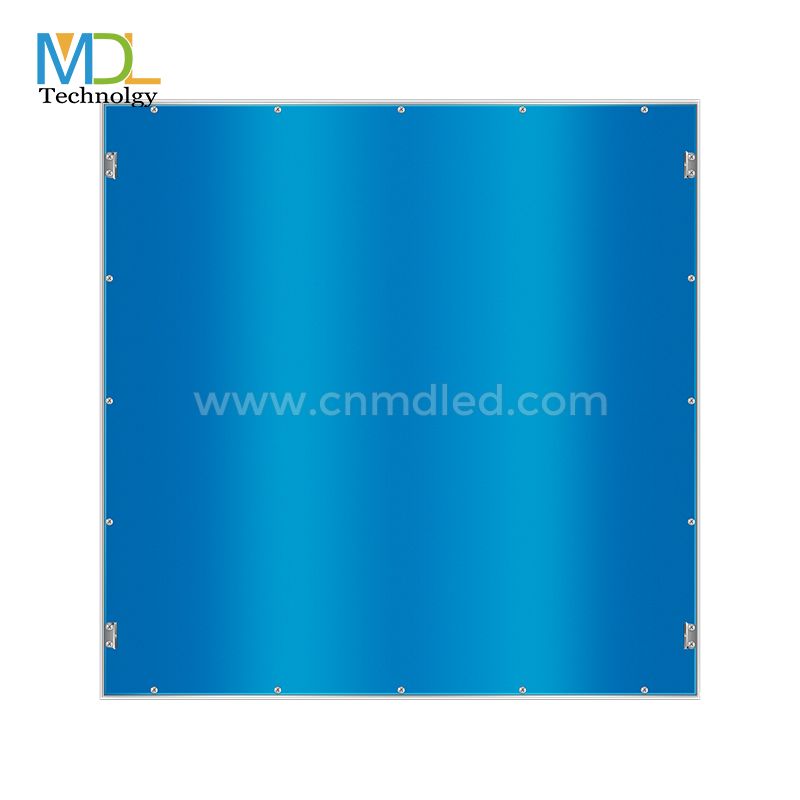

RGB LED Panel Light Model: MDL-PL-RGB

● Advanced super longlife and stable driver.

● No delay on start, no warm up time required, no noise, no flickering.

● No UV or IR radiation in the beam, mercury free, lead free.


Products Description

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● CCT: RGB/RGBW/RGBWW

● Lume: 100LM/W;

● CRI: 80;

● UGR< 19/17 available;

● Dimmable Way: 2.4g PF Remote Control / Wifi

● Matrail: Aluminum+PMMA LGP


ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 120degree

● Driver Efficiency: >90%

● IP Range: IP44

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Magnesium alloy heatsink for cooleroperating temperatures

● -20℃ ~ +50℃ operating temperature

● -20℃ ~ +50℃ storage temperature


What are the advantages of RGB LED Panel Light?

● Ceiling LED luminaires with frame in high value design

● Bright and colour, dimmable function,No IR/UV radiation

● CCT:2800-3200K 4000-4500K 6000-6500K are available

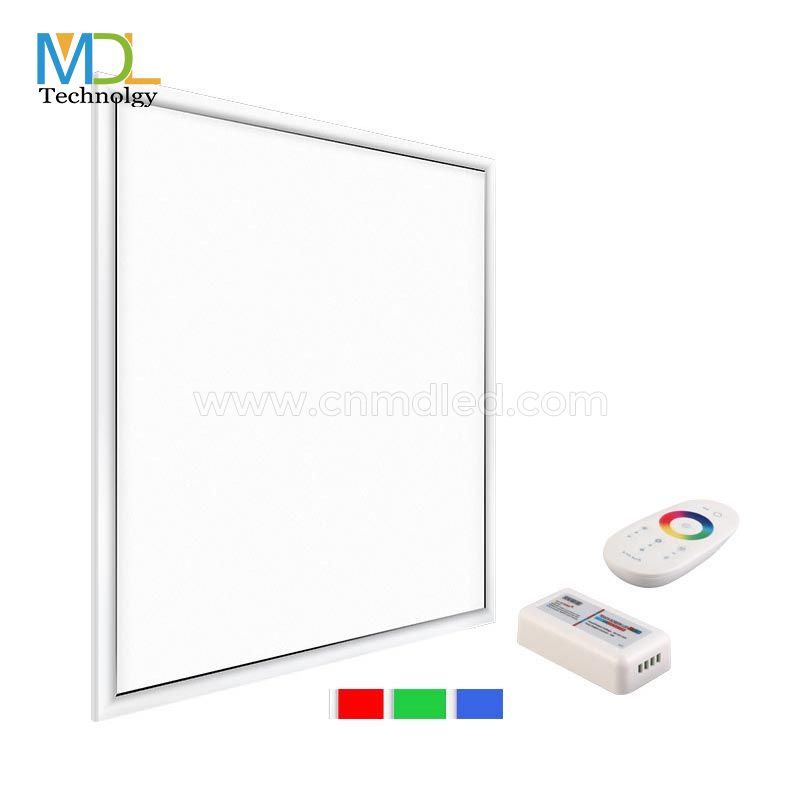

● Use 2.4G hz RGB control system,anti interference ability

● It can adjust the brightness and colours in the same time

● Ultra-thin panel thickness, thanks to side-lit LED lighting

● No visible diodes or glare, just a soft even field of light

● For recessed mounting, pendant mounting or ceiling mounting

● Be Compatible with IR, RF, DMX, DALI control system

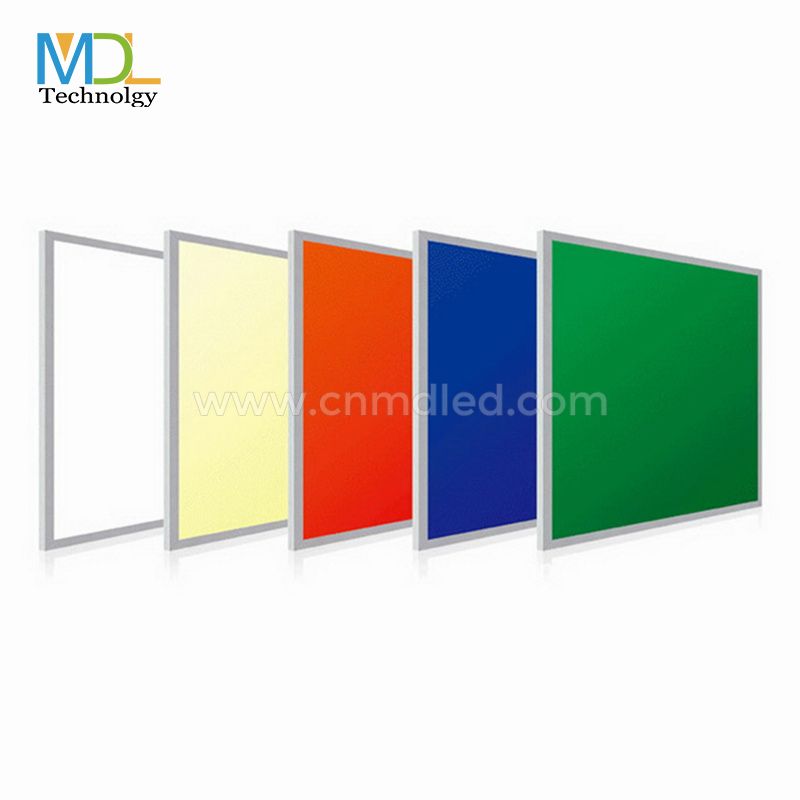

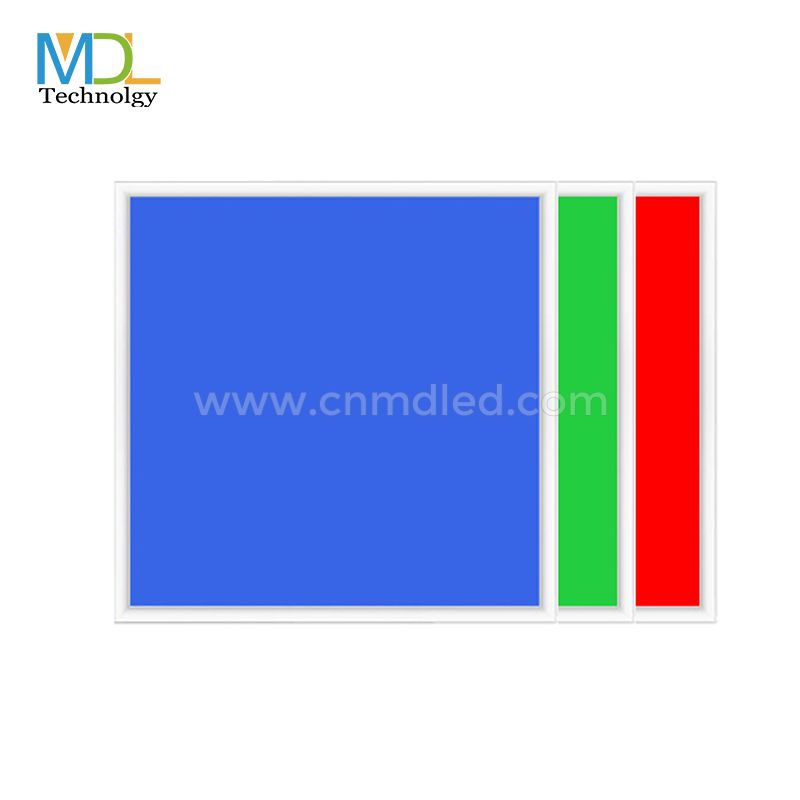

● RGB dimmable led panel light is Red/Green/Blue three colors change.

● Lock cable DC plug for RGB led panel light.


PERFORMANCE SUMMARY

RGB LED Panel Light Model: MDL-PL-RGB


INSTALLATION

Panel Light
