MDL Up and Down LED Panel Light Model: MDL-PL-UD

● Advanced super longlife and stable driver.

● No delay on start, no warm up time required, no noise, no flickering.

● No UV or IR radiation in the beam, mercury free, lead free.


Products Description

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT;

● Lume: 100LM/W;

● CRI: 80;

● Tridonic/Philips/Osram Driver available; (Triac/0-10V/Dali available)

● Matrail: Aluminum+PMMA LGP


ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 120degree

● IP Range: IP44

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Magnesium alloy heatsink for cooleroperating temperatures

● -20℃ ~ +50℃ operating temperature

● -20℃ ~ +50℃ storage temperature


PRODUCT FEATURE

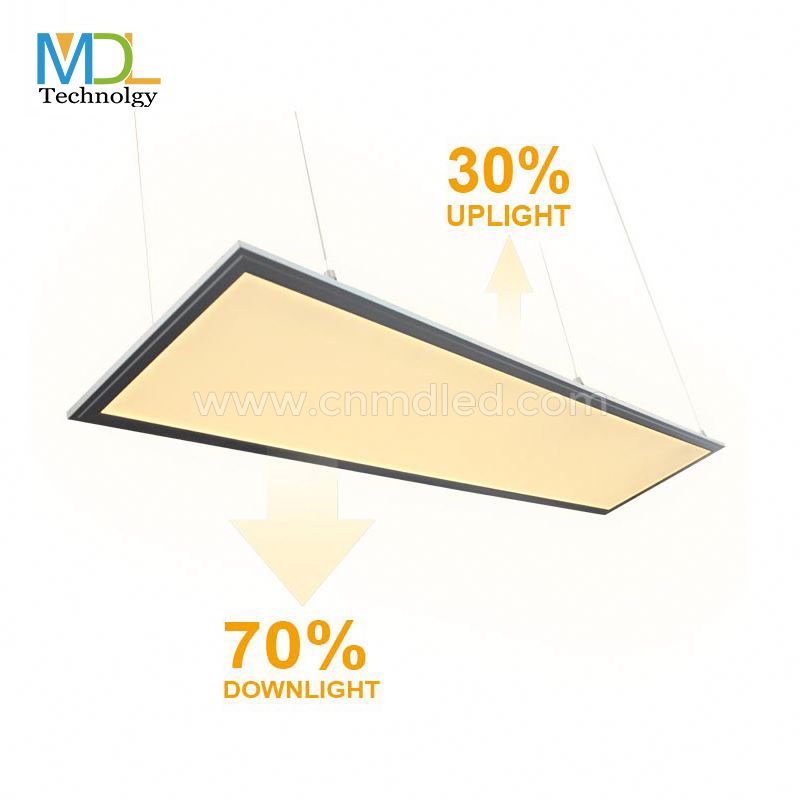

● Reasonable lighting configuration design, 30% uplight and 70% downlight.

● Distribution (20%/30%/50% uplight distribution are optional).

● Unique design, high quality of surface processing.

● The surface is very clean and glossy, the light is soft and no glaring.

● Built-in high efficiency flicker free driver.

● Energy-saving, long lifespan, good CRI, easy installation.

● CRI>80, SDCM<5.

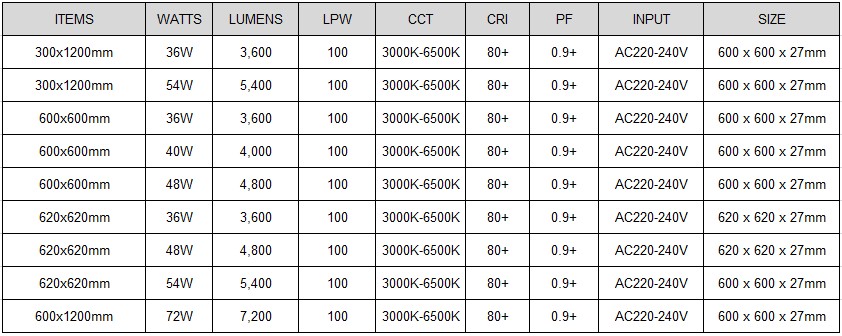

PERFORMANCE SUMMARY

up and down  led panel light Shenzhen MDL Lighting Technology Co., Ltd-1.JPG

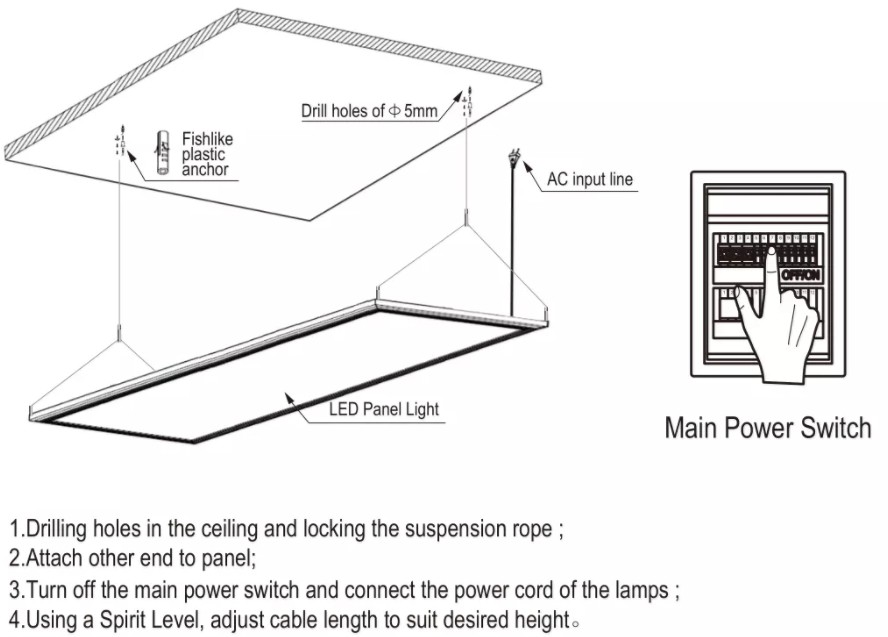

INSTALLATION

up and down  led panel light Shenzhen MDL Lighting Technology Co., Ltd.JPG
