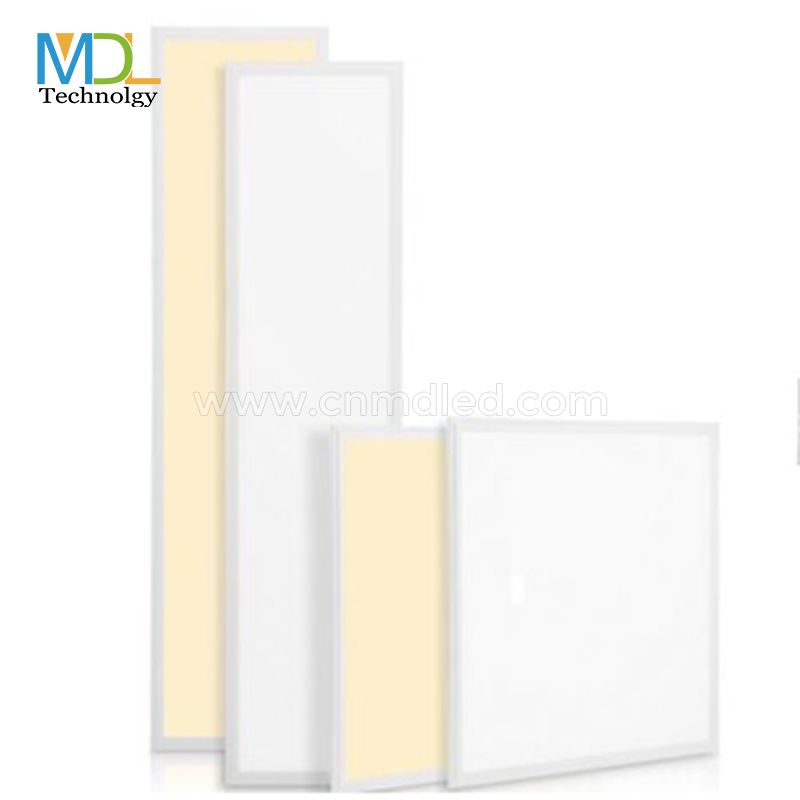

MDL CCT Dimmable Color LED Panel Light Model: MDL-PL-CCT

● Advanced super longlife and stable driver.

● No delay on start, no warm up time required, no noise, no flickering.

● No UV or IR radiation in the beam, mercury free, lead free.


Products Description

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT;

● Lume: 100LM/W;

● CRI: 80;

● Dimmable: Dimmable from 3000K to 6500K

● Dimmable Way: Color temperature and brightness dimmable

● Matrail: Aluminum+PMMA LGP (PS or MS LGP)


ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 120degree

● IP Range: IP44

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Magnesium alloy heatsink for cooleroperating temperatures

● -20℃ ~ +50℃ operating temperature

● -20℃ ~ +50℃ storage temperature


What are the advantages of CCT LED Panel Light?

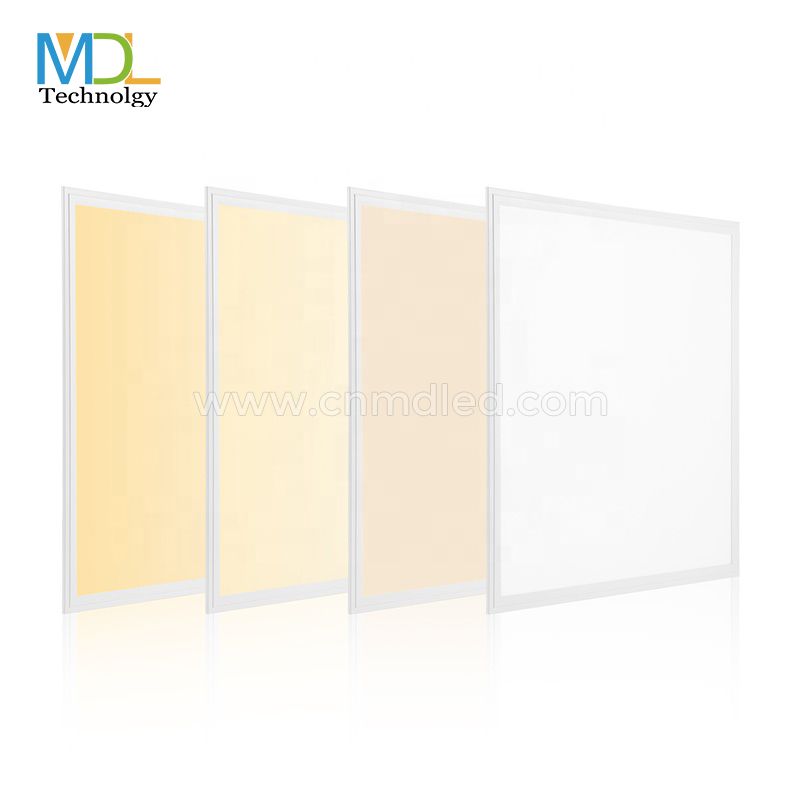

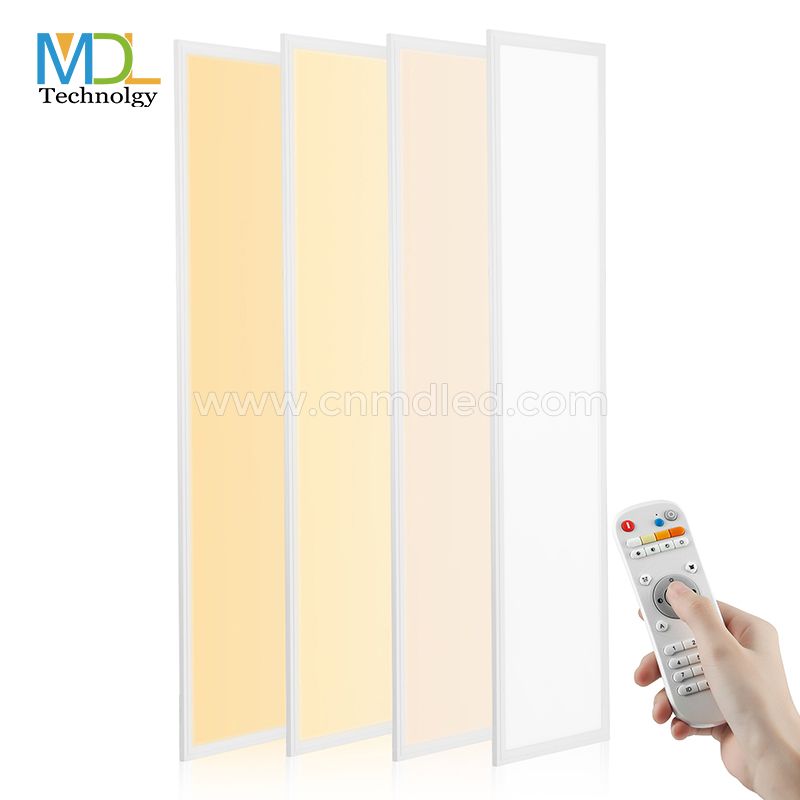

● 2700-6500K color temperature tunable, and brightness dimmable

● No-Flicker,anti-electromagnetic interference.

● Stepless adjusting and 4-step fast adjusting for color temperature and brightness option.

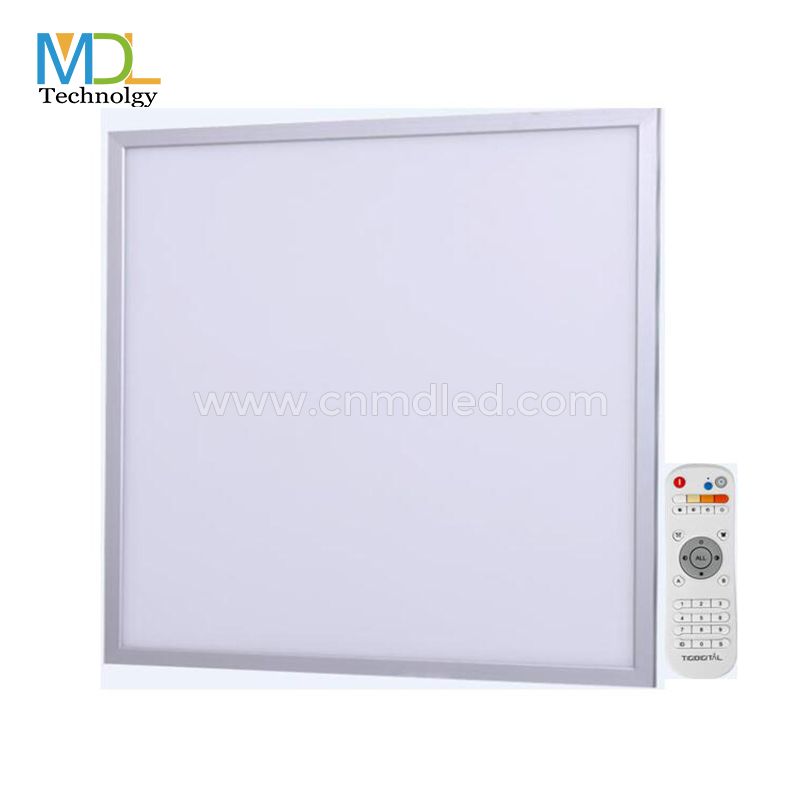

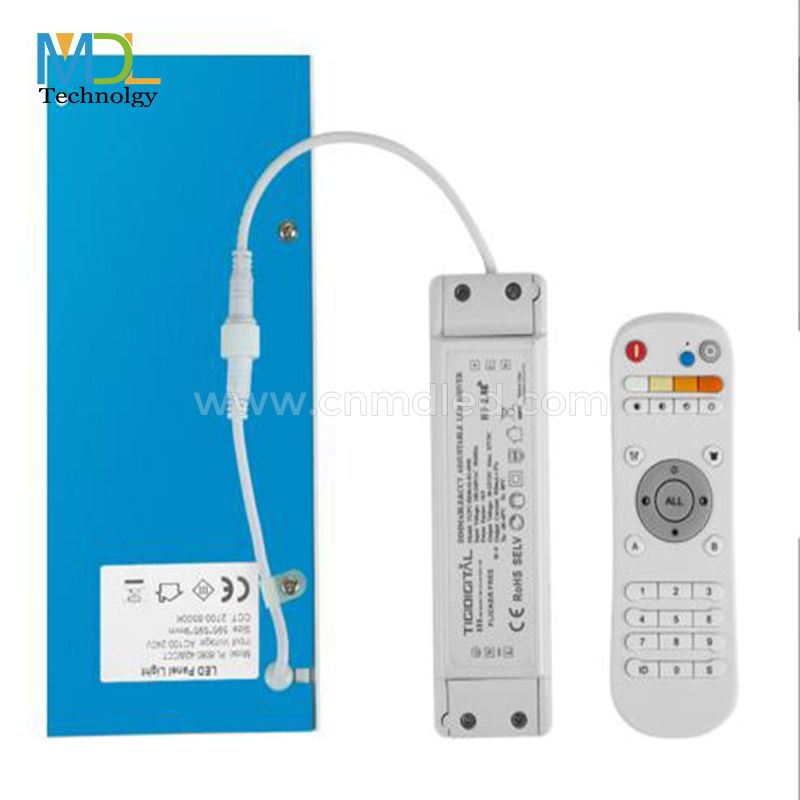

● It can control simultaneously with any number of led panel lights by just one RF remote control.

● One remote can setup 99 groups led panel light, and each group has no limit for panel light quantity

● Support light sensor to dim brightness automatically.

● Support setup time to turn on/off.

● Support cyclical mode, save mode.


PERFORMANCE SUMMARY

MDL-PL-CE LED Flat Panel Light


INSTALLATION

Panel Light
