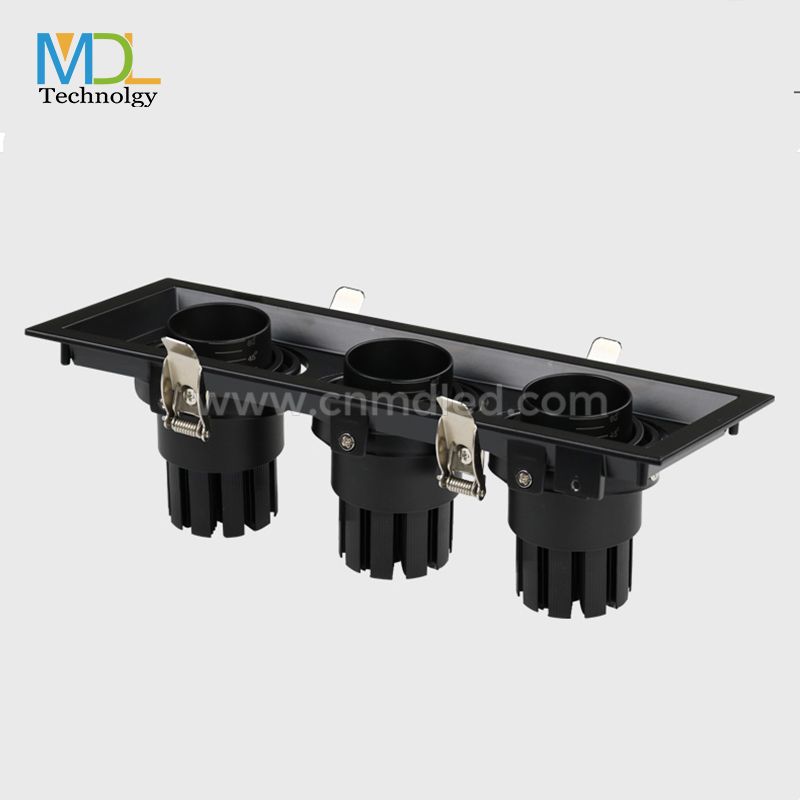

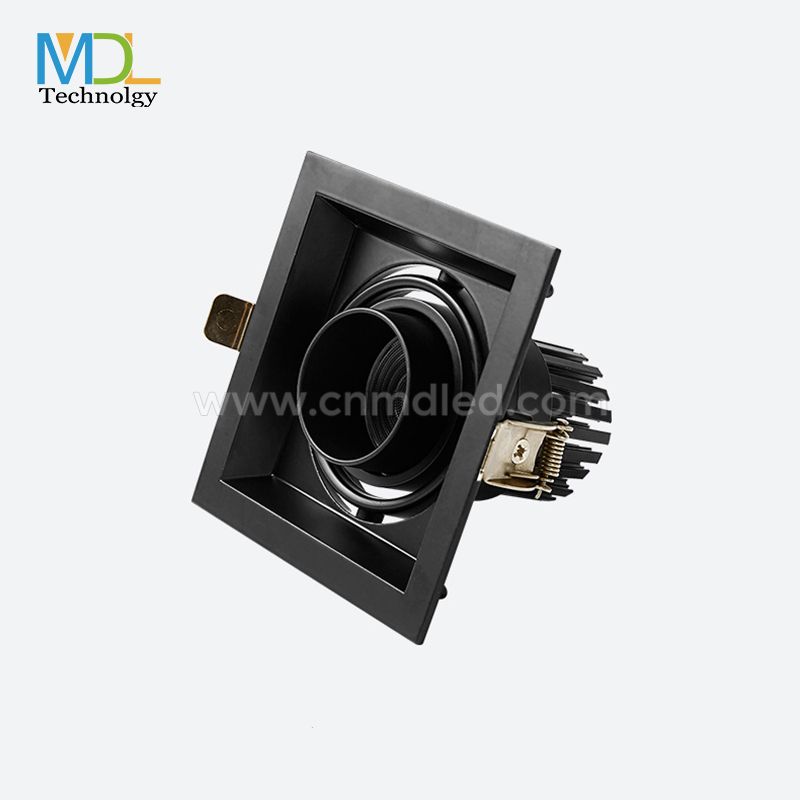

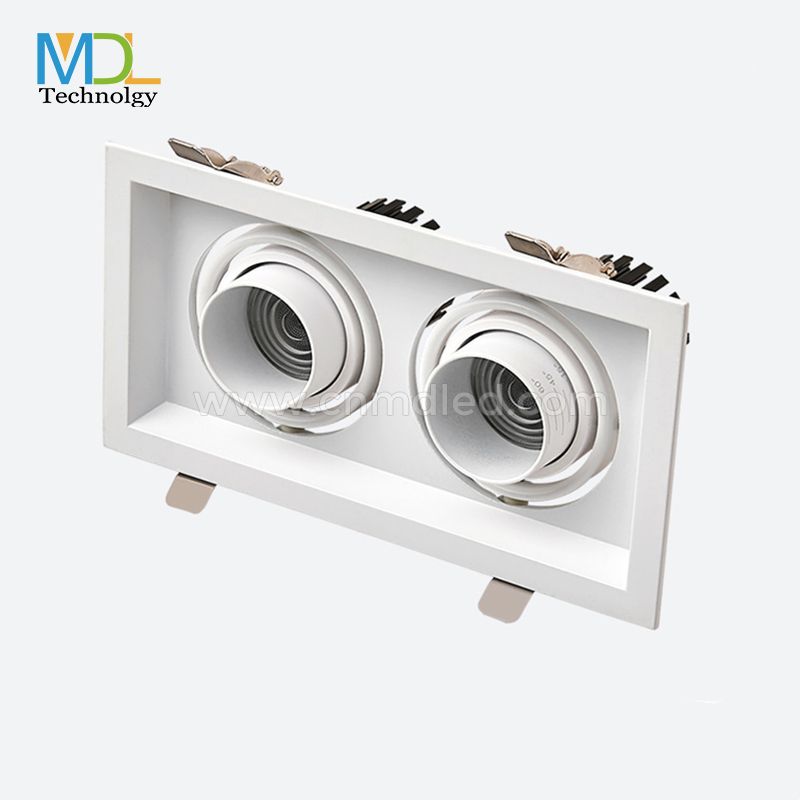

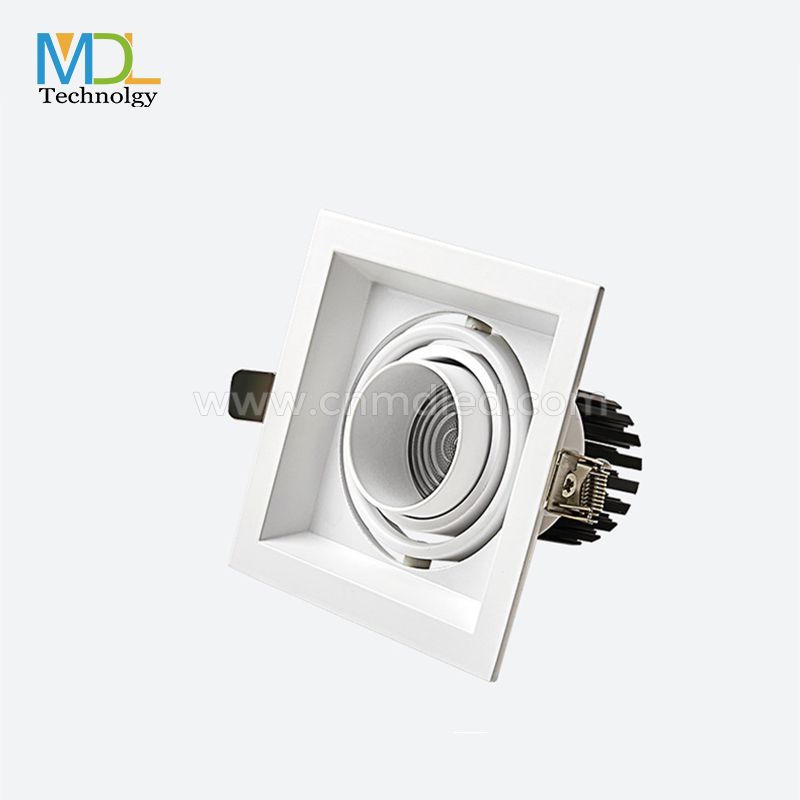

MDL Recessed LED Grille Downlight Single, Double or Three Head Model: MDL-GDL13

● Advanced super longlife and stable driver.

● No delay on start, no warm up time required, no noise, no flickering.

● No UV or IR radiation in the beam, mercury free, lead free.


Products Description

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT;

● Lume: 100/120 LM/W;

● CRI: 80/90/95 available;

● IP Range: IP44;

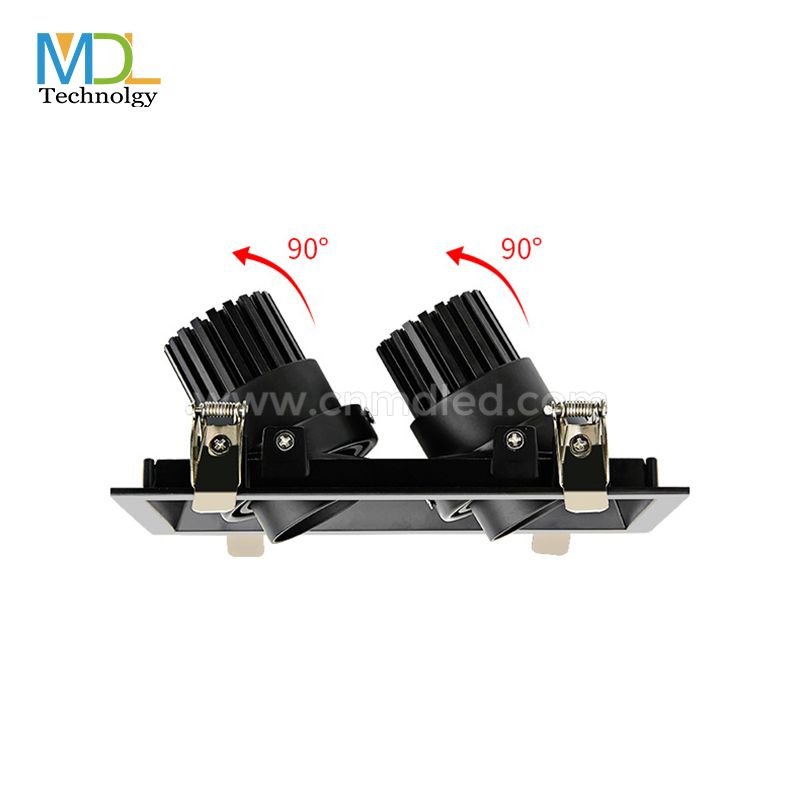

● Adjustable available;

● LED chips: Epistar/Bridgelux/Cree/Citizen/Osram/Philips/Samsung available;

● Triac/0-10V/Dali available;

● Tridonic/Philips/Osram/Lifud Driver available;

● Material: Aluminum;

● Body Color: Black or White or other;


ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 12/24/36/45/60/120degree

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Magnesium alloy heatsink for cooleroperating temperatures

● -20℃ ~ +50℃ operating temperature

● -20℃ ~ +50℃ storage temperature


PERFORMANCE SUMMARY

Recessed LED Grille Downlight Model: MDL-GDL12
