The ELGC-300-DA series is a newly developed LED driver with DALI 2 dimming function which can apply to intelligent dimming control interface and further increase the value of luminaires
Besides, the ELGC-300 series adopts the constant power mode design to reduce the compatible issue. It is also equipped with 3 in 1, DALI 2 and programmable dimming functions. The isolation design between the output and dimming cables is added to enhance the safety of luminairy usage. ELGC-300 series is compliant with the latest safety regulation: IEC61347/ UL8750 and GB7000.1.
ELGC-300 series key features include wide input voltage range from 100 to 305V.
It can be used at 100% load output with driver current from 1300 m A ~8000 m A at 300w full power output. High efficiency reach 94.5% with surge protection 6k V/4KV design.

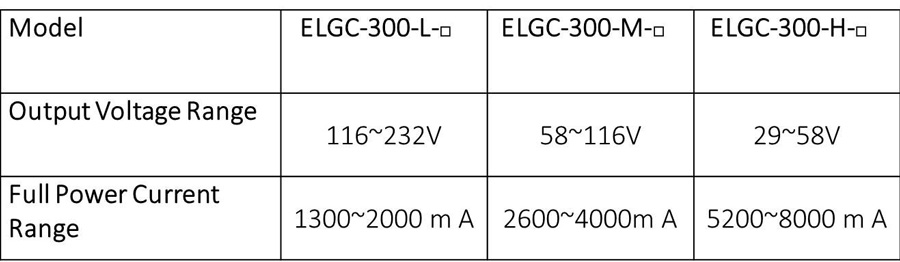

ELGC-300 series model:
Full power at 65~100% operation(Constant Power mode)
Protection function: SCP/OVP/OTP
IP67 design for indoor and outdoor installations
Function options: output adjustable via potentiometer, 3 in 1 (dim to off) and DALI 2 dimming
Surge protection: 6KV/4KV
Lifetime >50,000 hrs and 5 years warranty
