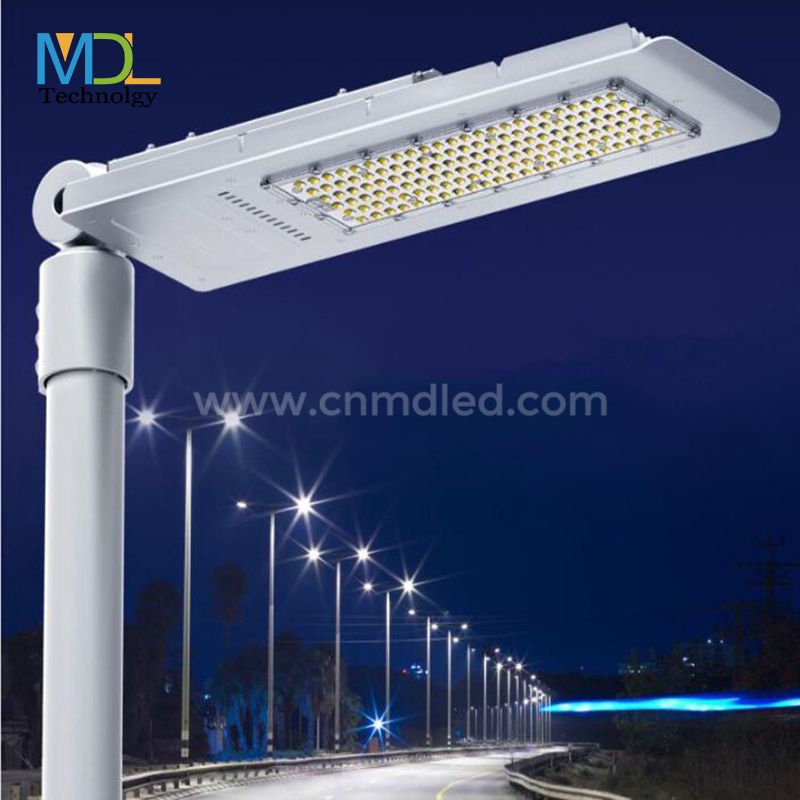

High Pole Cantilever Street Light Model:MDL-STE

High Pole Cantilever Street Light Model:MDL-STE

● Advanced super longlife and stable driver.

● No delay on start, no warm up time required, no noise, no flickering.

● No UV or IR radiation in the beam, mercury free, lead free.



Inquire Now Next Product

Products Description

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT;

● Lume: 100/125LM/W;

● CRI: 80/90/95 available;

● IP Range: IP66

● IK Range: IK08

● LED chips: Epistar/Osram/Philips/Samsung available;

● Triac/1-10V/DALI/Photecell available;

● Tridonic/Philips/Osram/Lifud Driver available;

● Solar panels can be added to become solar street lights

● Material: Die-case Aluminum

● Body Color: Gray or Black Or other



ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 120degree

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Die-cast aluminum heatsink for cooleroperating temperatures

● -20℃ ～ +65℃ operating temperature

● -20℃ ～ +60℃ storage temperature

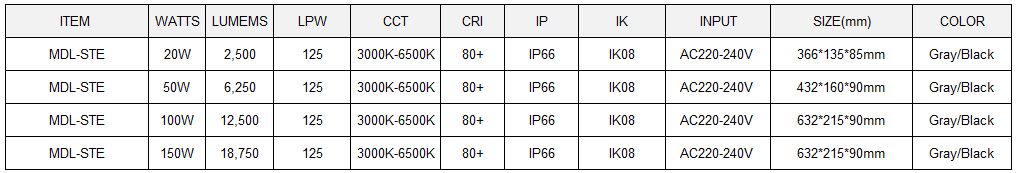

PERFORMANCE SUMMARY

LED Streel Light Model:MDL-STE
