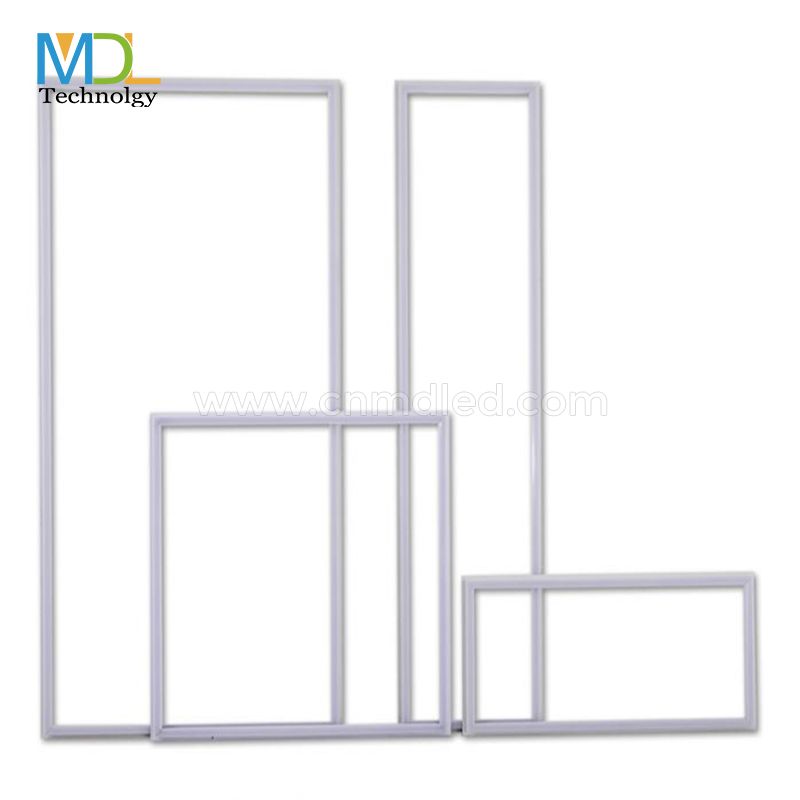

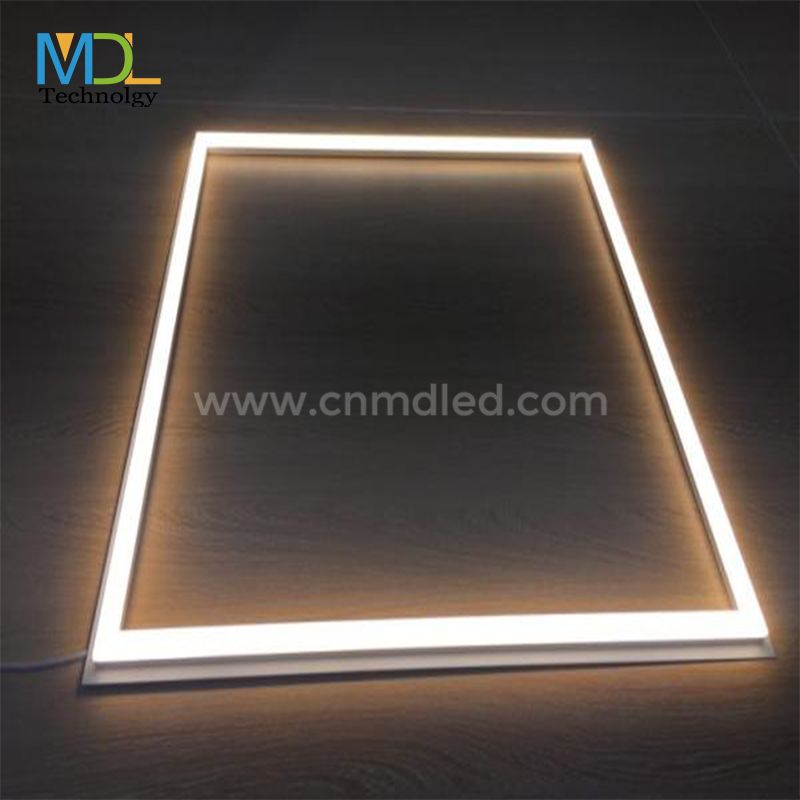

MDL Frame LED Panel Light Model: MDL-PL-Frame

● Advanced super longlife and stable driver.

● No delay on start, no warm up time required, no noise, no flickering.

● No UV or IR radiation in the beam, mercury free, lead free.


Products Description


PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT;

● Lume: 100LM/W;

● CRI: 80;

● UGR< 19/17 available;

● Tridonic/Philips/Osram Driver available; (Triac/0-10V/Dali available)

● Matrail: Aluminum+PMMA LGP (PS or MS LGP)


ELECTRICAL

● Input Voltage: AC220-240V 50/60Hz

● Beam angle: 120degree

● IP Range: IP20

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<15%


CONSTRUCTION

● Lightweight constuction allows for quick and easy installation

● Magnesium alloy heatsink for cooleroperating temperatures

● -20℃ ~ +50℃ operating temperature

● -20℃ ~ +50℃ storage temperature

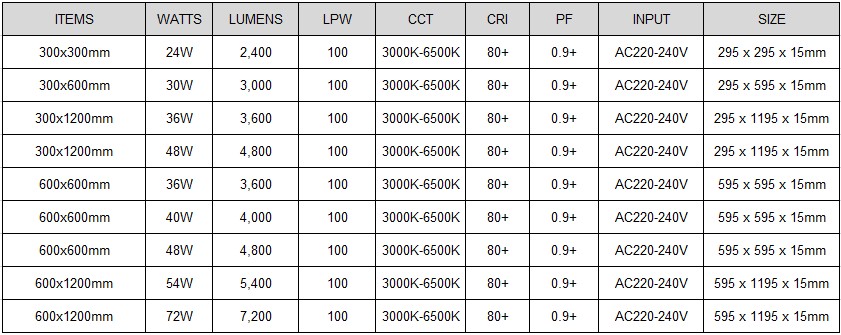

PERFORMANCE SUMMARY

Frame LED Panel Light Model: MDL-PL-RGB


INSTALLATION

Panel Light
