MDL LED strip light office light supermarket shopping mall classroom strip light hanging line light : MDL-LLE1A

DESCRIPTION

● The design of LED Linear Light breaks through the limitations of traditional

lighting design,the length of extrusion profiles can be cuttable according your

request,even infinite connection for each other. Let everyone  enjoy the

freedom of design. Higher efficiency, lower line current in the circuit, lower cost.

●Different from the complex,luxurious European lighting style,using LED linear

lighting system to cut the space for a variety of simple geometric shapes,opened

a fresh,elegant stylish lighting new field,will become the new trend in recent years.

LISTINGS

● CE ROSH is provite, IP44 Range

● Green lighting, Eco-friendly, no UV or IRradiation in the beam, mercury free-

sale.

●Anti-shock, anti-moisture, no RF interference, no buzing noise and no

flourescent flickering-stable.

●Easy to Surface , Recessed or Suspending install and use, secure and reliable,

and high power for fashion retail and office applications

PERFORMANCE

● Rated lifetime L80: 50,000 hours

● 3000-6500K CCT Tunable

●  CRI: 80

● Emergency :No/1.5/2/3Hs

ELECTRICAL

●  Input Voltage: AC220-240V 50/60Hz

● Dimming type: NO/OFF or DALI, Phase, 1-10V

● Beam Angle: 120DEGREE

● Driver Efficiency: >90%

● Power Factor: >0.9

● THD<25%

THERMAL

● -30℃ ~ +55℃ operating temperature

● -35℃ ~ +70℃ storage temperature

CONSTRUCTION

● Constructed is Aluminum housing+PC Diffuser .

● Constant current LED driver included. integrated heat sink, allow the free flow

of air, better heat dissipation. Seamless connection

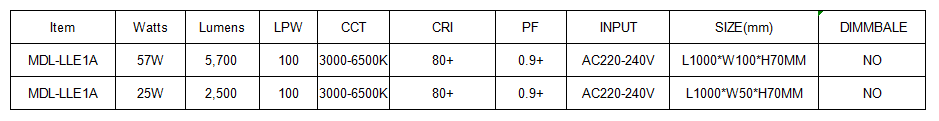

PERFORMANCE SUMMARY

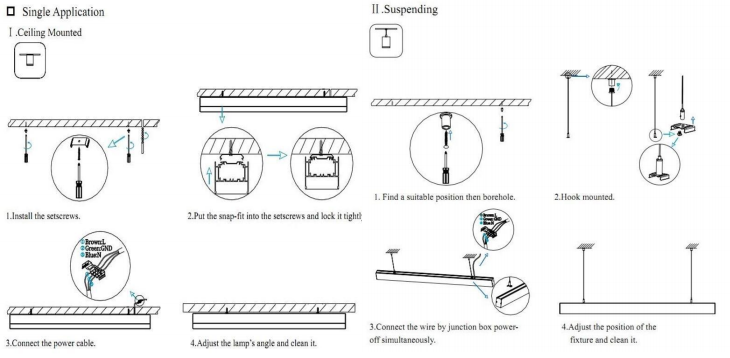

INSTALLATION INSTRUCTIONS
